LVCF-BLDC Ceiling Fan-Driver

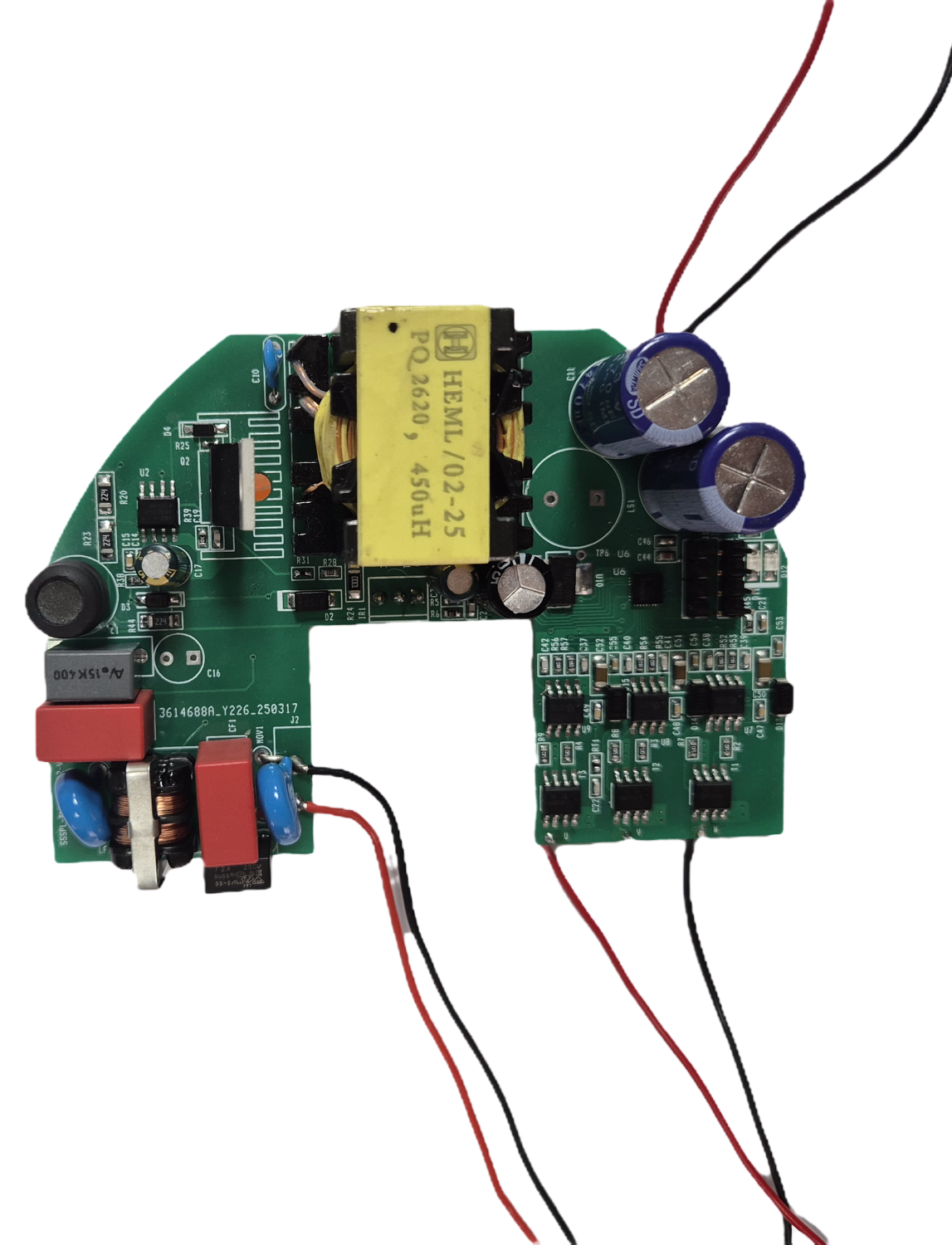

The LVCF BLDC Ceiling Fan Controller is a compact, reliable control board designed for low-voltage BLDC ceiling fan applications. It integrates a 220V AC to 24V DC / 2A power supply, SONIX MCU-based control, and an onboard BLDC gate-driver stage, providing an integrated solution for efficient fan operation.

The controller supports both IR and RF remote controls, giving users flexible and convenient fan-speed and function control. Its integrated control architecture reduces external components and simplifies BLDC fan system development.

Key Features

Input: 220V AC mains
Output: 24V DC, up to 2A
Application: Low-voltage BLDC ceiling fans
MCU: SONIX MCU onboard
Integrated BLDC gate-driver circuit
Dual remote compatibility: IR + RF
Designed for efficient BLDC motor control
Compact PCB design for easy integration into ceiling-fan systems
Suitable for OEM, R&D, prototyping, and production applications

The LVCF BLDC Ceiling Fan Driver is an integrated electronic control unit designed to operate and control a low-voltage BLDC motor used in ceiling fans. It converts AC mains power into regulated low-voltage DC and precisely drives the motor using electronic commutation.

The driver ensures efficient speed control, smooth starting, low noise, and reliable operation across wide input voltage conditions.
